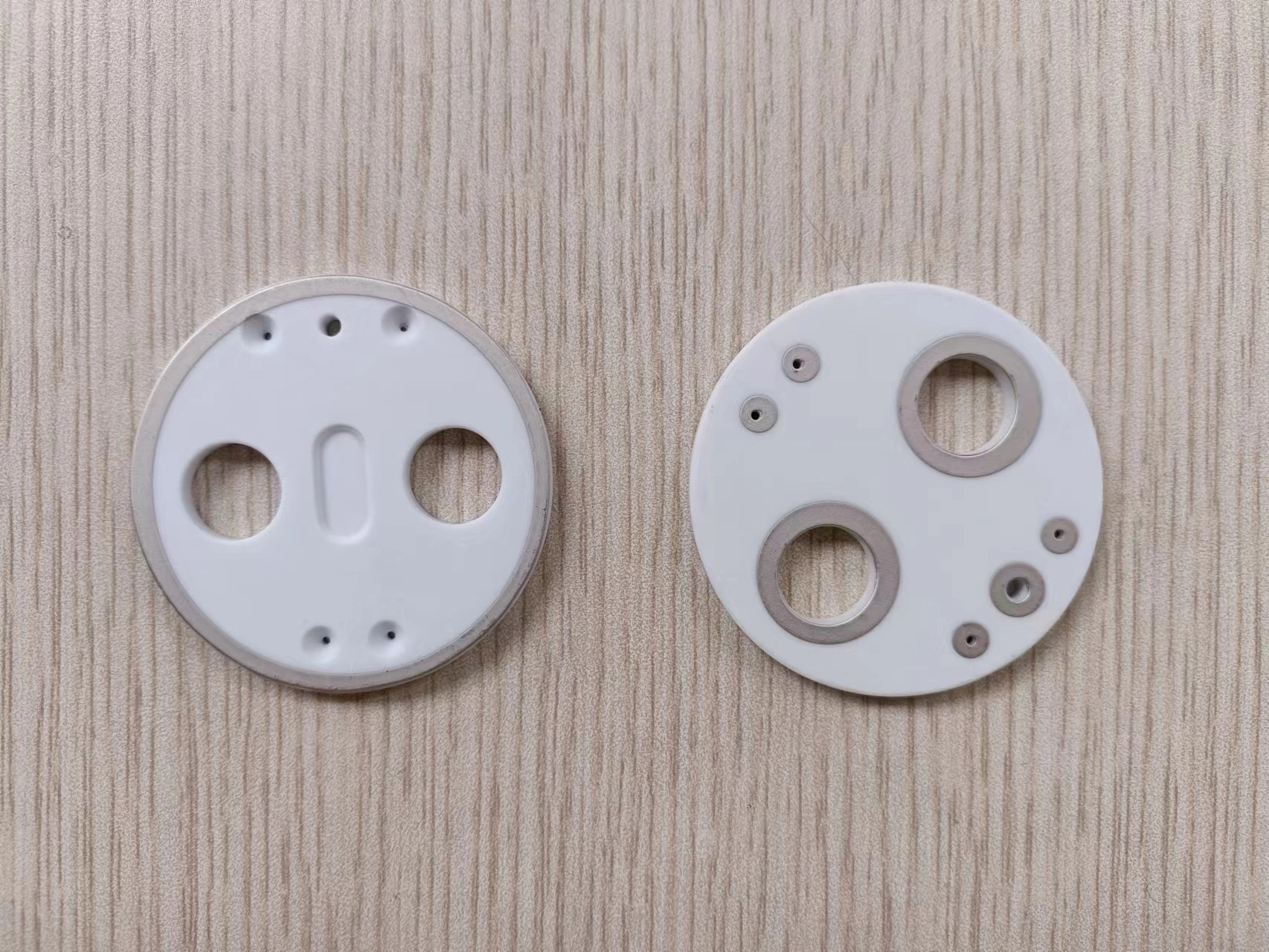

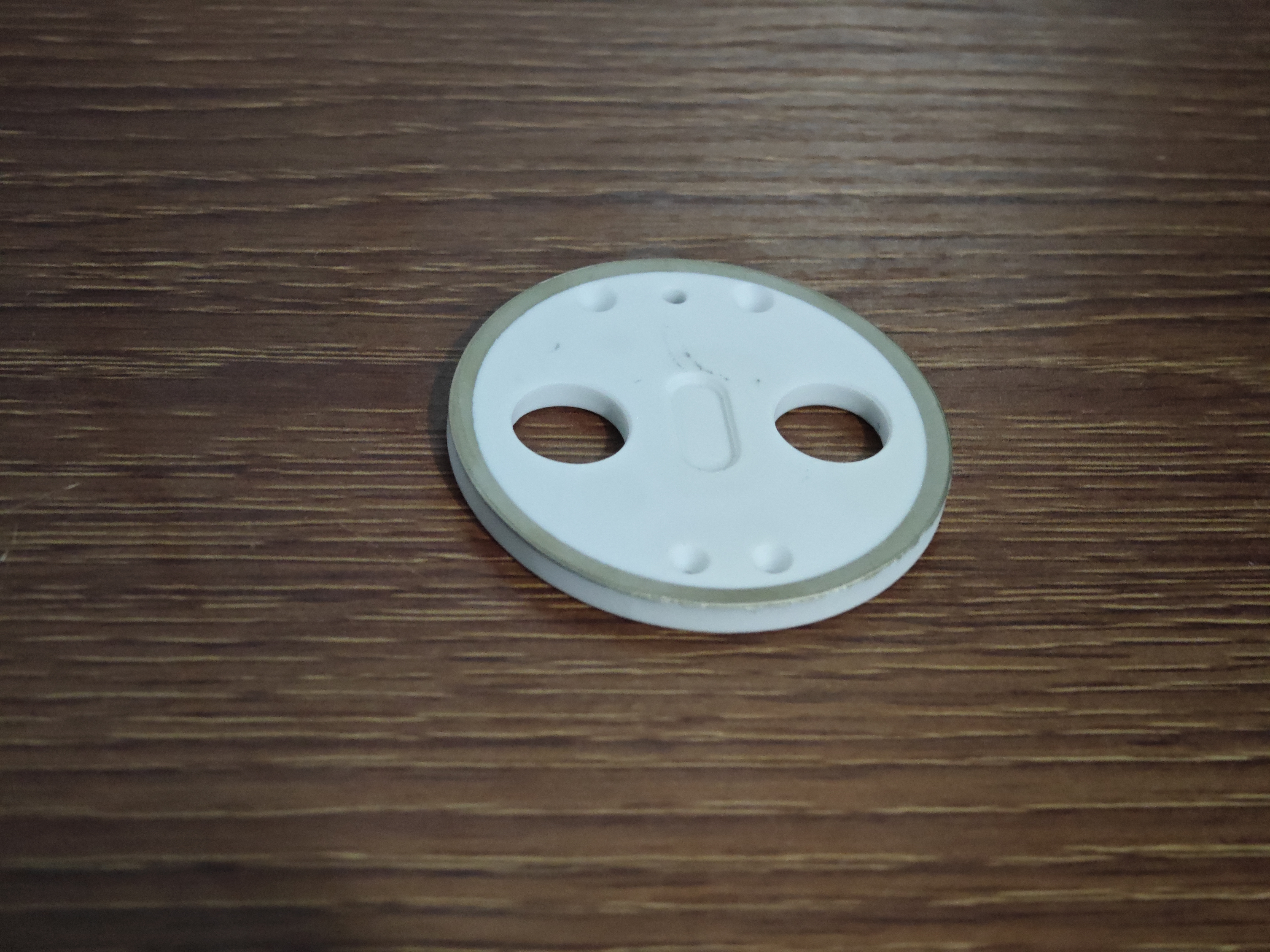

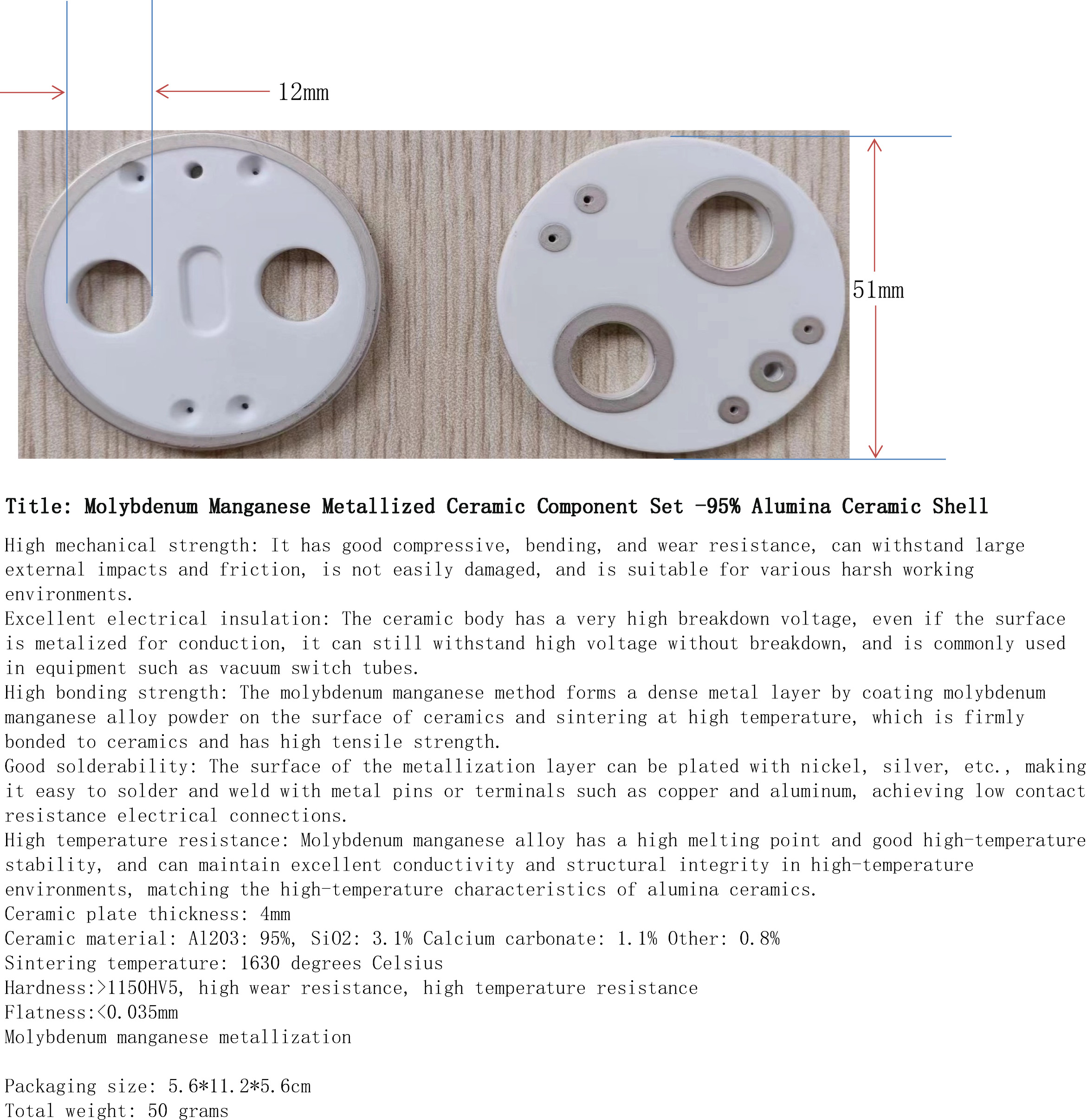

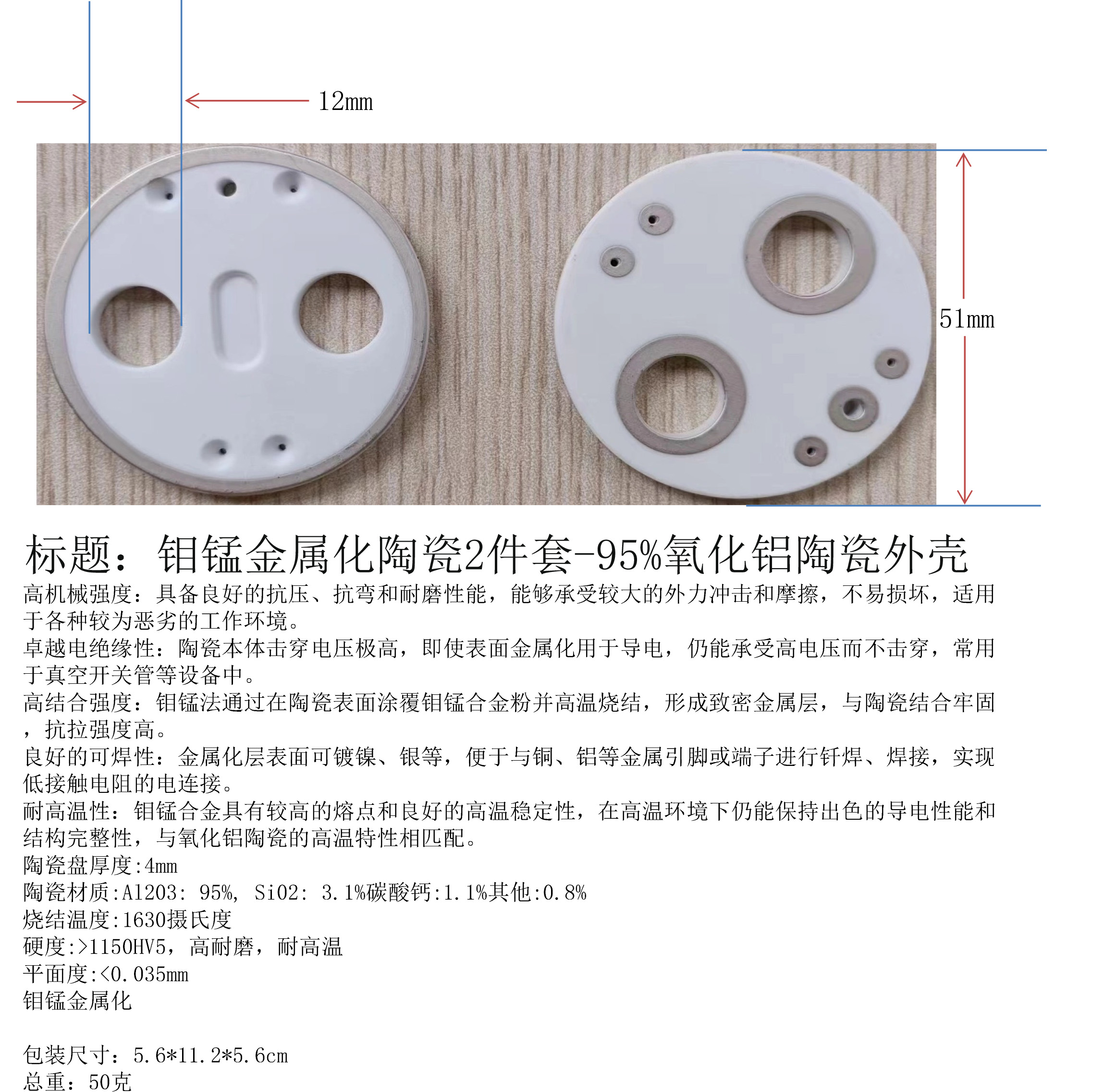

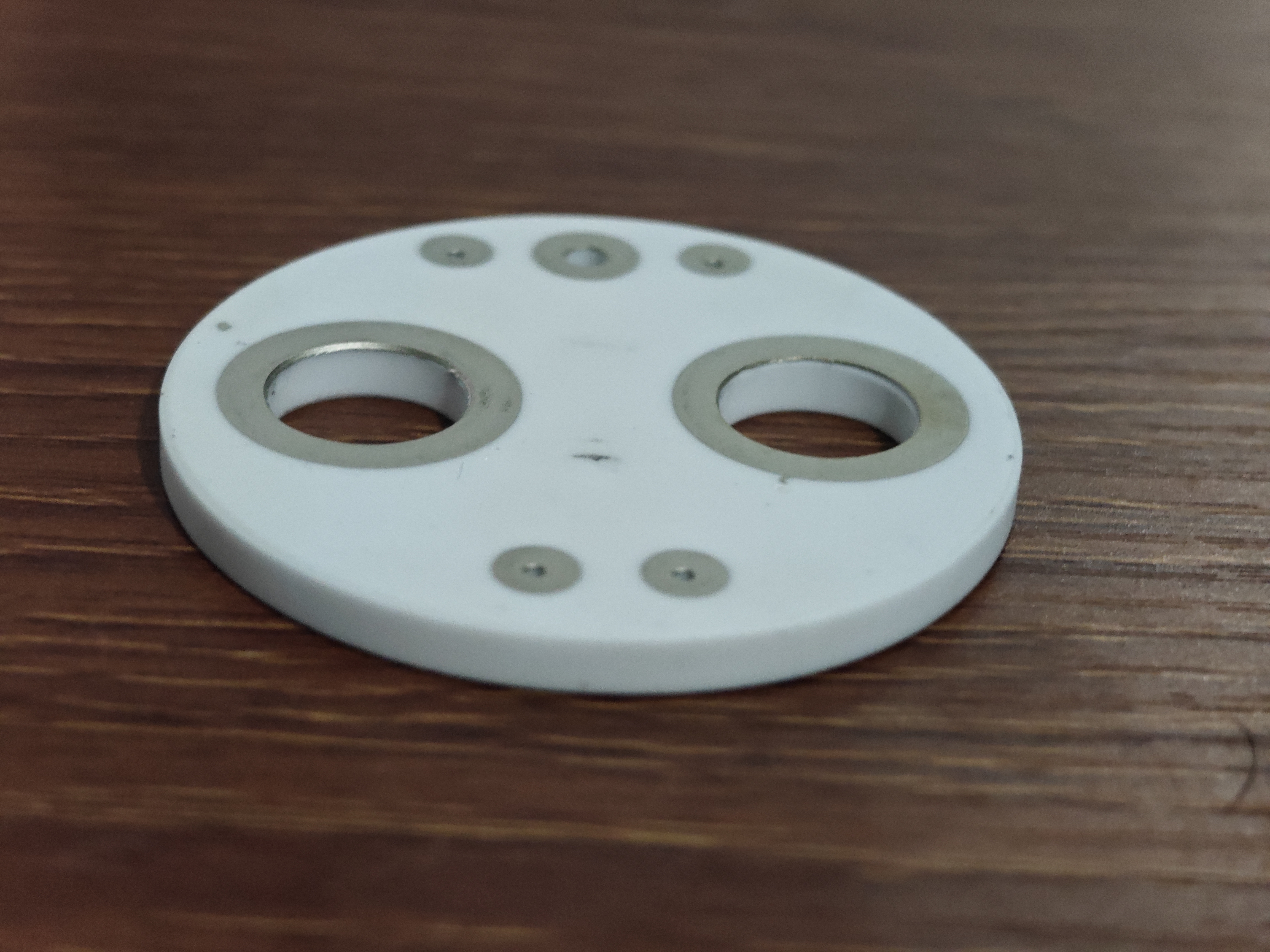

Product Name: Molybdenum Manganese Metallized Ceramic Component Set -95% Alumina Ceramic Shell

Ceramic material: Al203: 95%, SiO2: 3.1% Calcium carbonate: 1.1% Other: 0.8%

Sintering temperature: 1630 degrees Celsius

Hardness:>1150HV5, high wear resistance, high temperature resistance

Flatness:<0.035mm

Thermal conductivity: 0.4Cal. Cm. S ° C

Volume resistivity: 10130 cm

Molybdenum manganese metallization

Product model: YCB-TC-BY 2026011804

Size: 4mm high

Packaging size: 5.6*11.2*5.6cm

Total weight: 50 grams

High mechanical strength: It has good compressive, bending, and wear resistance, can withstand large external impacts and friction, is not easily damaged, and is suitable for various harsh working environments.
Excellent electrical insulation: The ceramic body has a very high breakdown voltage, even if the surface is metalized for conduction, it can still withstand high voltage without breakdown, and is commonly used in equipment such as vacuum switch tubes.
High bonding strength: The molybdenum manganese method forms a dense metal layer by coating molybdenum
manganese alloy powder on the surface of ceramics and sintering at high temperature, which is firmly bonded to ceramics and has high tensile strength.
Good solderability: The surface of the metallization layer can be plated with nickel, silver, etc., making it easy to solder and weld with metal pins or terminals such as copper and aluminum, achieving low contact resistance electrical connections.
High temperature resistance: Molybdenum manganese alloy has a high melting point and good high-temperature stability, and can maintain excellent conductivity and structural integrity in high-temperature environments, matching the high-temperature characteristics of alumina ceramics.
